M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Grote Afbeelding :  M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Productdetails:
Plaats van herkomst: Hunan, China
Merknaam: SOLLROC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: $200
Contact

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

beschrijving
Gewicht: 25 kg Materiaal: met een breedte van niet meer dan 50 mm
Type verwerking: Smeden Diameter bereik: 3,5 - 12 inch (90 mm - 305 mm)
Gezichtsvorm: Vlak, convex, concave Knoppentype: Bolvormig, parabolisch, ballistisch
Luchtslang: 2, 3, 4 Gauge knoppen: 6×φ14, 7×φ13, 7×φ14, 8×φ14, 7×φ16, 7×φ18, 8×φ18, 9×φ18, 10×φ18, 11×φ18, 12×φ18
Voorknoppen: 5×φ13, 6×φ13, 6×φ14, 7×φ14, 8×φ14, 8×φ16, 9×φ16, 12×φ16, 17×φ16, 29×φ16 Deelnummers: M40-105, M40-110, M40-115, M40-120, M40-127, M50-130, M50-140, M50-146, M50-152, M50-165, M60-152, M
Rotshardheid: 200 MPa tot 260 MPa Beetjediameter (mm): 105, 110, 115, 120, 127, 133, 140, 146, 152, 165, 178, 190, 203, 195, 216, 254, 305
Beetjediameter (inch): 4 1/8", 4 1/4", 4 1/2", 4 3/4", 5", 5 1/4", 5 1/2", 5 3/4", Compressieve sterkte: 200 MPa tot 260 MPa
Boordiepte: Geen limiet
Markeren:

M30 M40 M50 M60 M80 Shank DTH Drill Bits

,

3.5 - 12 Inch Down The Hole Drill Bits

,

Carburized Steel Button Bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits for DTH Drilling
Product Application

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications. They offer advantages including high flatness, smooth hole walls, high rigidity of drill rod and hammer, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance.

Key Features
  • Button bit provides high wear resistance on medium-hard to hard abrasive rock formations (200-260 MPa compressive strength) with spherical tungsten carbide inserts for strong configuration against carbide fracture
  • Recommended for eliminating hole deviation
  • Ideal for drifting and tunneling applications
  • Bit face design optimized for medium-hard to hard abrasive rock
Mission Series DTH Bit Specifications
Mission Bits Bit Dia (mm) Bit Dia (inch) Air Hose Gauge Buttons Front Buttons Part No
Mission40 105 4 1/8" 2 6×φ14 5×φ13 M40-105
110 4 1/4" 2 7×φ13 6×φ13 M40-110
115 4 1/2" 2 7×φ14 6×φ13 M40-115
120 4 3/4" 2 8×φ14 6×φ14 M40-120
127 5" 2 8×φ14 7×φ14 M40-127
Mission50 133 5 1/4" 2 7×φ16 6×φ14 M50-130
140 5 1/2" 2 7×φ18 7×φ14 M50-140
146 5 3/4" 2 8×φ18 7×φ14 M50-146
152 6" 2 8×φ18 8×φ14 M50-152
165 6 1/2" 2 8×φ18 8×φ16 M50-165
Mission60 152 6" 2 8×φ16 8×φ16 M60-152
165 6 1/2" 2 8×φ18 8×φ16 M60-165
178 7" 2 8×φ18 8×φ18 M60-178
190 7 1/2" 3 9×φ18 9×φ16 M60-190
203 8" 3 9×φ18 9×φ18 M60-203
Mission80 195 7 11/16" 3 9×φ18 9×φ16 M80-195
203 8" 3 9×φ18 9×φ18 M80-203
216 8 1/2" 2 10×φ18 12×φ16 M80-216
254 10" 3 11×φ18 17×φ16 M80-254
305 12" 4 12×φ18 29×φ16 M80-305
Product Images

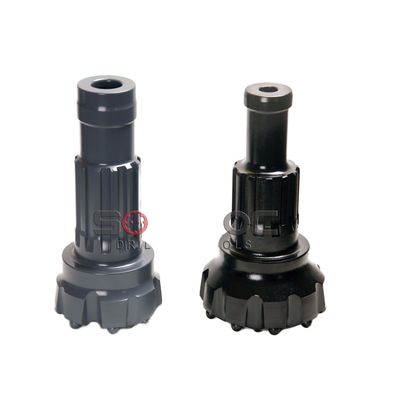

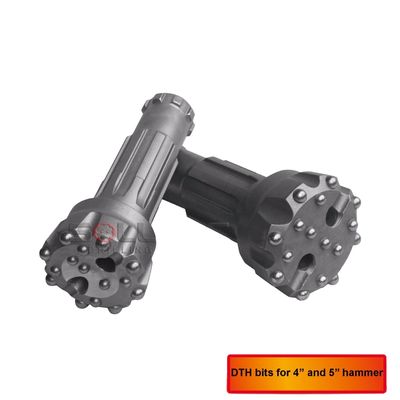

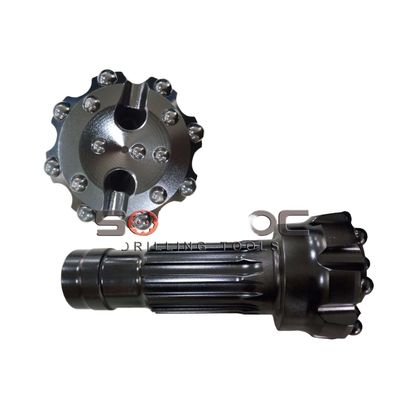

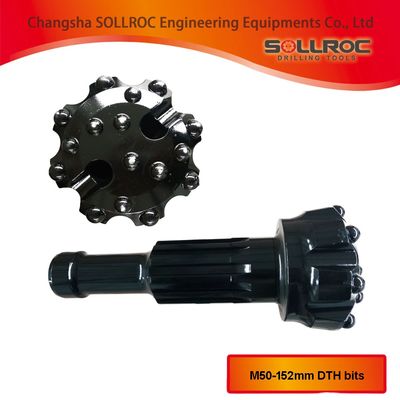

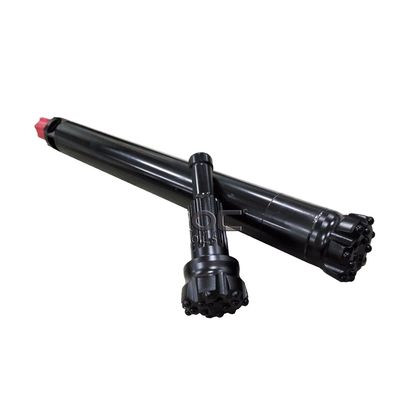

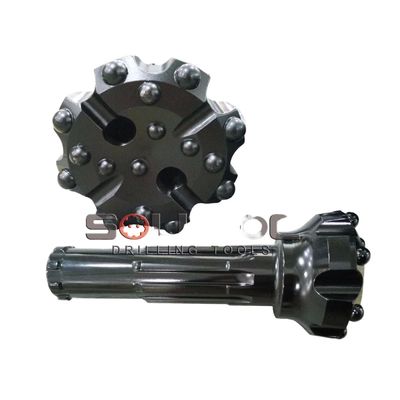

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 0
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 1
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 2
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 3
Flat face
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 4
Convex
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 5
Concave
Packing & Delivery
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 6
Ply-wooden cases
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 7
Ply-wooden cases + pallet

Delivery options: By sea, by air, or by express

Related Products
M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 8

DTH hammers

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 9

DTH bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 10

RC hammers

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 11

RC bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 12

Button bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits 13

ODEX and concentric system
