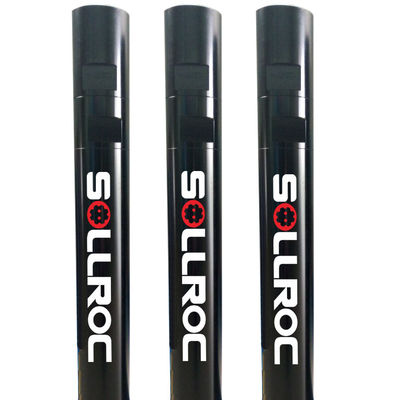

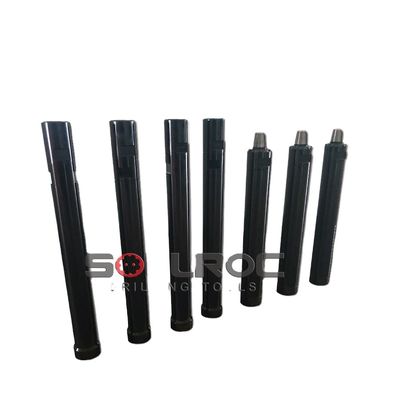

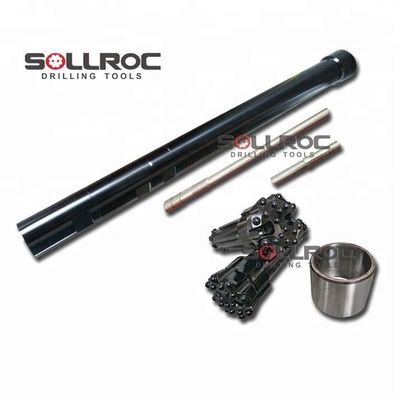

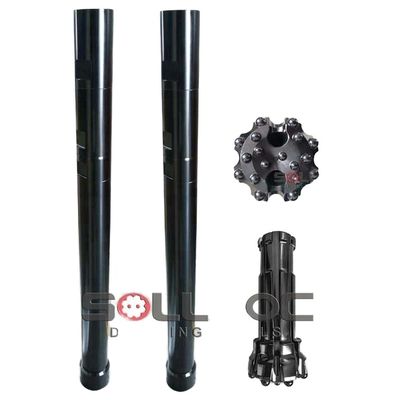

4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining

4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining

Grote Afbeelding :  4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining

Productdetails:
Plaats van herkomst: Hunan, China
Merknaam: SOLLROC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: $1,800
Contact

4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining

beschrijving
Gewicht: 55 kg Materiaal: met een breedte van niet meer dan 50 mm
Diameter: 5 duim Bietdiameter: 109.5 mm
Bietdiameter: 4 1/2 inch. Lengte: 1191 mm
Werkdruk: 1.5-3.5 MPA Thuisbereik: φ113-φ130
Gezichtsvorm: Vlak, convex, concave Knoppentype: Bolvormig, parabolisch, ballistisch
Rotshardheid: 200-260 MPA Type verwerking: Smeden
Machinetype: Boorgereedschap Gewicht van de stukken: 57 kg
Type: Hamer
Markeren:

4.5inch RC Drill Hammer

,

RE542 Down The Hole Hammer

,

High Efficiency DTH Hammer

4.5inch RE542 RC Drill Hammer for Water Well Drilling
Key Features
  • Button bit features high wear resistance for medium-hard to hard abrasive rock formations (200-260 Mpa compressive strength)
  • Spherical tungsten carbide inserts provide strong configuration against carbide fracture
  • Effectively eliminates hole deviation
  • Ideal for drifting and tunneling applications
  • Optimized bit face design for medium-hard to hard abrasive rock
Product Application

RC (Reverse Circulation) drilling utilizes Dual Wall or Dual Tube Drilling technology. Compressed air flows down the annulus of the rod into the hammer and bit. Rock fragments crushed by the bit are collected into the inner tube via air holes on the bit head, then returned to the surface for sampling.

Applications include:

  • Underground mining and quarries
  • Hydraulic and Hydro-Power Engineering
  • Water well drilling and mineral exploration
  • Anchoring hole drilling and geothermal engineering
  • Subway excavation and civil engineering projects
Product Specifications
Items Bit Dia (mm) Bit Dia (inch) Weight (kg) Length Working Pressure Home Range
RC4.5-E542 109.5mm 4 1/2" 57kg 1191mm 1.5-3.5Mpa φ113-φ130
Product Images
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 0
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 1
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 2
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 3
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 4
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 5
Packing & Delivery
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 6
Plywood cases
4.5inch RE542 High Efficiency RC Drill Hammer for Water Well Drilling and Mining 7
Plywood cases + pallet

Delivery options: By sea, By air or by Express
